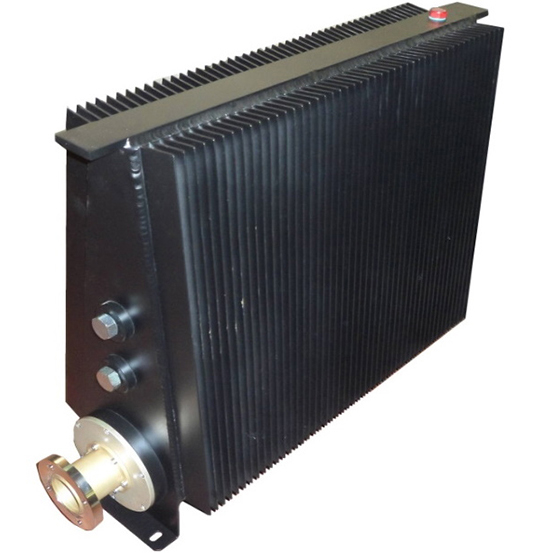

2500W RF DUMMY LOAD
- Series: RF Dummy Load
- Model: 27000290
- Power: 2500W
FEATURES
- Dimension: 230x600x500 mm
- Temperature range: -10 ÷ +50 °C
- Weight: 36 KG
- Freq. Range: DC ÷ 862 MHz
- Max input Power: 2500W (C.W.)
- Return loss: > 26 dB
- Input Impedence: 50 Ohm
- Connector: 7/8" - 1+5/8" - 3+1/8"
TECHNICAL SPECIFICATIONS
- Frequency range: DC ÷ 862 MHz
- Return loss:> 26
- Input Impedance: 50 Ohm
- Maximum input power: 2500 (rms)
