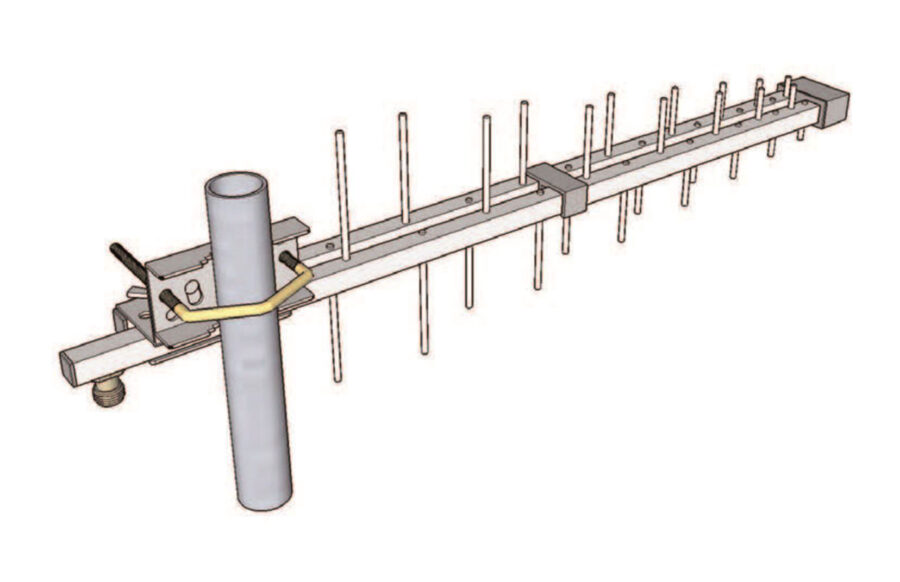

LOG ANTENNA 790 ÷ 2700 MHz
- Series: STL Antennas
- Model:LOG7902700
FEATURES
-
Frequency: 790 ÷ 2700 MHz
Bandwidth: 1910 MHz
Impedance: 50 Ω
VSWR: < 1,7
Gain: 9÷11 dB
Front to Back Ratio: > 15dB
Polarization: H/V
Light Protection: Galvanic mass to the fixing pole
Max Power: 100 W
Connector: N female a 50Ω
TECHNICAL SPECIFICATIONS
- Material Antenna: Al alloy 6060
- Cradle dimensions: 14x14x0,8 mm
- Elements Size: Ø 4 mm
- Number of elements: 19
- Removable elements: -
- Length: 870 mm
- Width: 190 mm
- Weight: 750 g
- Wind resistance150 km/h
- Mounting pipe: Ø25-60mm
- Elevation Adjustment: +/- 20°
- IP rating: IP65
- Temperature range: -30°C to 65°C
