DUAL CAST L-VISION TV TRANSMITTER
L-VISION Series represents the state of the art of the worldwide TV transmitter technology.
In a compact solution only 1 RU, it covers a power range up to 600W rms / 1200W p.s. and supports DVB-T/H / T2, ISDB-T/Tb, DTMB, DAB/DAB+/T-DMB, ATSC, PAL and NTSC modulations.
Of course, Dual Cast analog and digital configuration is also supported.
- Series:Dual Cast TV Transmitters
- Model: L-VISION
- Power: up to 600W rms
FEATURES

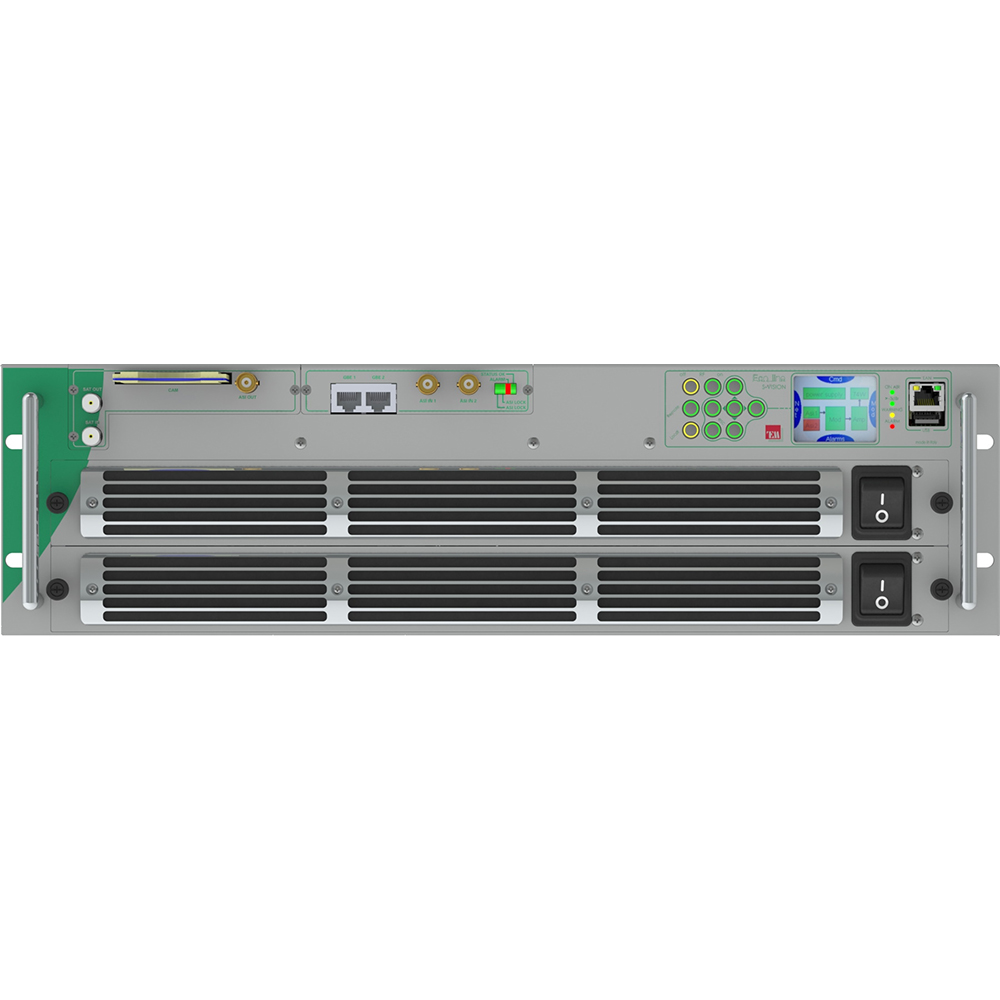

- Compact 3U 19" Rack chassis
- Output Power up to 600W rms in digital or up to 1200W p.s. in analogue
- High efficiency broadband amplifier technology
- DVB-T/H/T2, ISDB-T/Tb, DTMB, DAB/DAB+/T-DMB, ATSC, PAL, NTSC modulations fully supported
- Embedded Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter for ISDBTb
- Adaptive pre-correction circuits
- Powerful echo canceller when S-Vision is used as an on-channel repeater
- Optional high-performance additional echo cancellation circuit
- On-board high stability GPS / GLONASS receiver with battery
- Flexible input interfaces:
· 4 x ASI inputs (TS, BTS, T2MI, SMPTE-310M) + Analog input
· 2 x ASI inputs and 2 x Gigabit Ethernet
· 1 x DVB-S/S2 Satellite Receiver input
· 1 x RF input - SNMP, Web Interface (HTML 5)
TECHNICAL SPECIFICATIONS
- UHF digital output power: up to 600W rms @ MER 38 dB typ. (DVB, ISDB)
- UHF analog output power: up to 1200 W p.s.
- VHF digital output power: up to 1200 W rms @ MER 37 dB typ (DVB, IS-DB) / up to 650 W rms (ATSC)
- VHF analog output power: up to 1200 W p.s.
- Frequency Agility: UHF Band IV and V or VHF Band III
- Frequency resolution: 1Hz
- Pre-correction: Adaptive
- RF connector: 7/16 (f), 50 Ohm
