DUAL CAST S-VISION TV TRANSMITTERS
S-VISION Series represents the state of the art of the worldwide TV transmitter technology. In a compact solution only 1 RU, it covers a power range up to 130W rms / 220W p.s. and supports DVB-T/H / T2, ISDB-T/Tb, DTMB, DAB/DAB+/T-DMB, ATSC, PAL and NTSC modulations. Of course, Dual Cast analog and digital configuration is also supported.
- Series: Dual Cast TV Transmitters
- Model: S-VISION
- Power: up to 130W rms
FEATURES

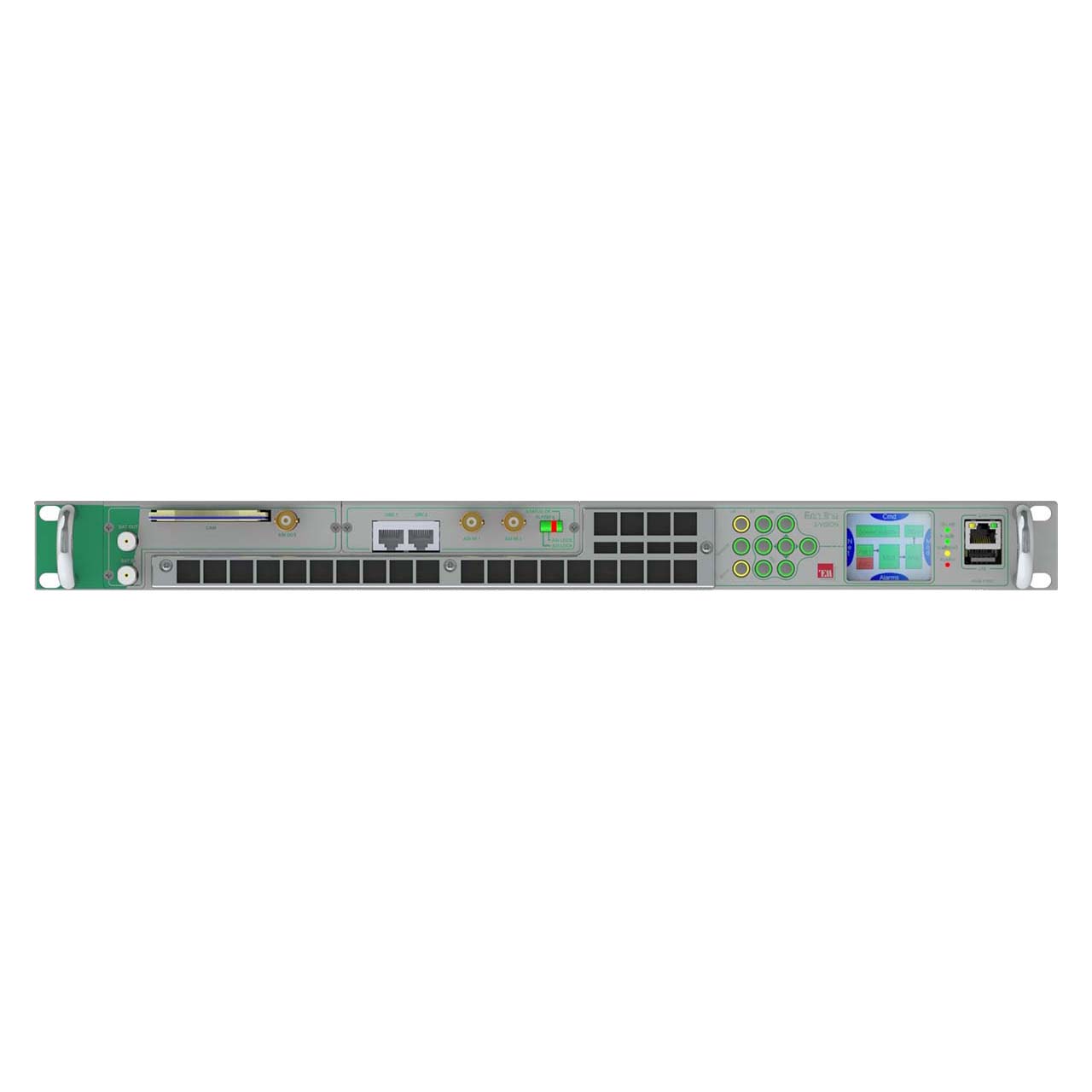

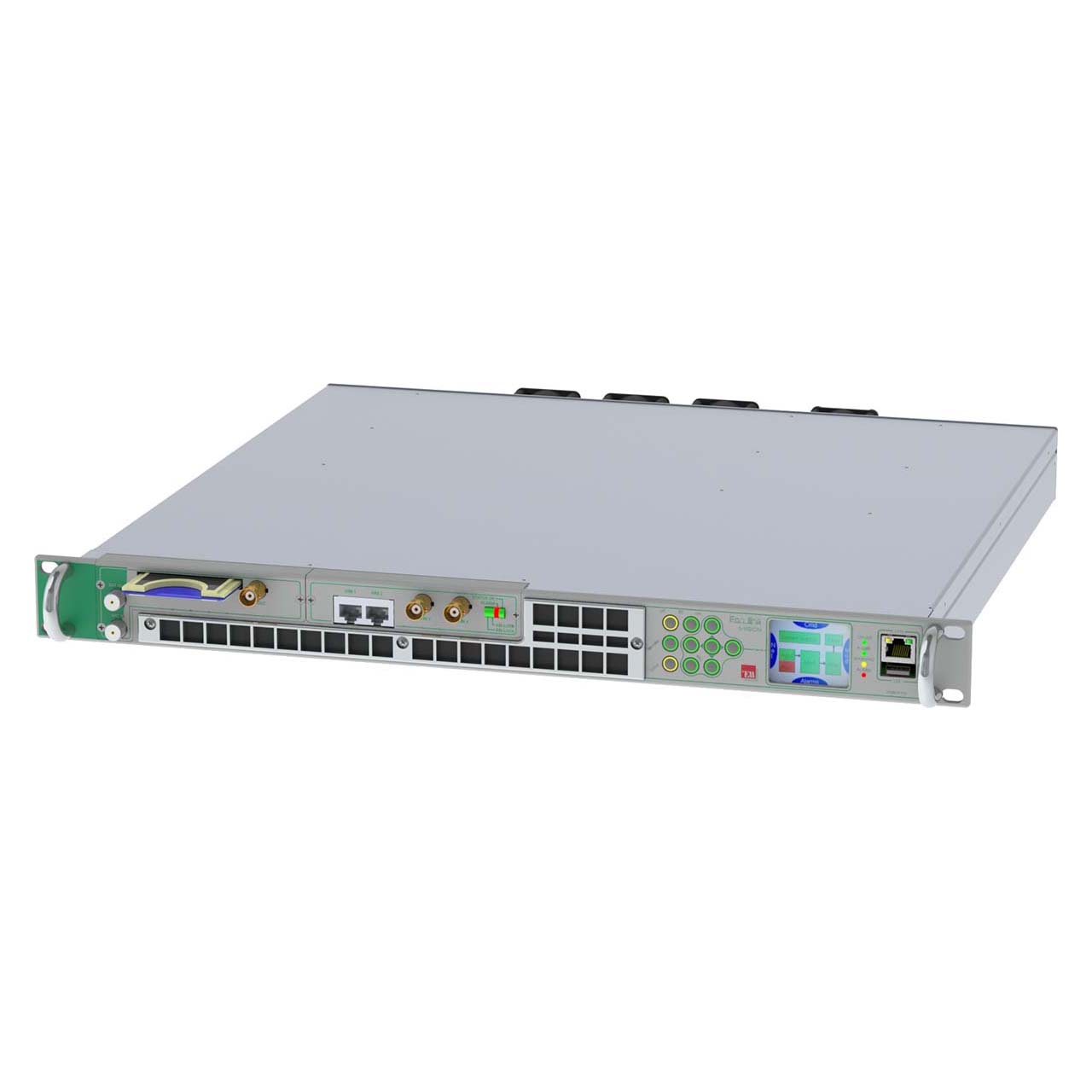

- Compact 1U 19" Rack chassis
- Output Power up to 130W rms in digital or up to 220W p.s. in analogue
- High efficiency broadband amplifier technology
- DVB-T/H/T2, ISDB-T/Tb, DTMB, DAB/DAB+/T-DMB, ATSC, PAL, NTSC modulations fully supported
- Embedded Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter for ISDBTb
- Adaptive pre-correction circuits
- Powerful echo canceller when S-Vision is used as an on-channel repeater
- Optional high-performance additional echo cancellation circuit
- On-board high stability GPS / GLONASS receiver with battery
- Flexible input interfaces:
· 4 x ASI inputs (TS, BTS, T2MI, SMPTE-310M) + Analog input
· 2 x ASI inputs and 2 x Gigabit Ethernet
· 1 x DVB-S/S2 Satellite Receiver input
· 1 x RF input - SNMP, Web Interface (HTML 5)
TECHNICAL SPECIFICATIONS
- UHF digital output power: 30W, 50W, 80W and 130W rms @ MER 40 dB typ
- UHF analog output power: 50W, 100W, 220W p.s
- VHF digital output power: up to 100 W rms @ MER 38 dB typ
- VHF analog output power: 220 W p.s.
- Frequency Agility: UHF Band IV and V or VHF Band III
- Frequency resolution: 1Hz
- Pre-correction: Adaptive
- RF connector: N (f), 50 Ohm
